Fine-tuning
Introduction
Fine-tuning is one of the most used techniques in deep learning. In this tutorial, we are going to learn how to load a pretrained model. Then, how to do Transfer learning. Finally, Fine-tune our model.
Load a dataset from Kaggle
In previous tutorials, we learned how to load a dataset from Kaggle. We have loaded a dataset called Tom and Jerry image classification and made the three subsets of train, validation, and test. Now, let’s do it again.
path = kagglehub.dataset_download("balabaskar/tom-and-jerry-image-classification")
path = Path(path) / "tom_and_jerry/tom_and_jerry"
tom_and_jerry_transforms = transforms.Compose([transforms.Resize([90, 160]), transforms.ToTensor()])
all_data = ImageFolder(path, transform=tom_and_jerry_transforms)
g1 = torch.Generator().manual_seed(20)
train_data, val_data, test_data = random_split(all_data, [0.7, 0.2, 0.1], g1)
train_loader = DataLoader(train_data, batch_size=16, shuffle=True)
val_loader = DataLoader(val_data, batch_size=16, shuffle=False)
test_loader = DataLoader(test_data, batch_size=16, shuffle=False)

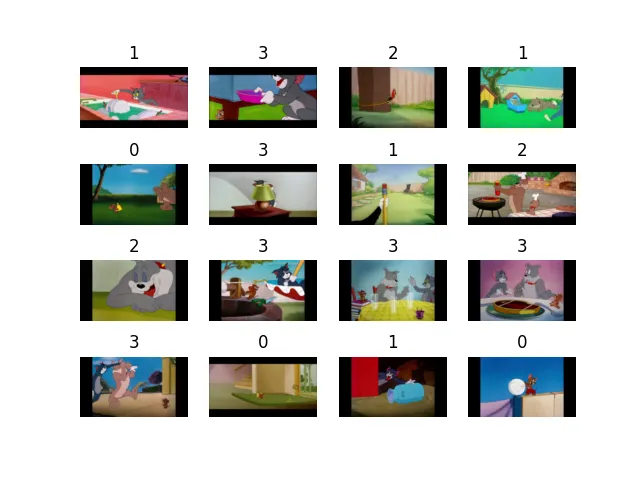

Let’s plot on batch of its data:
images, labels = next(iter(train_loader))
fig, axes = plt.subplots(4, 4)
axes_ravel = axes.ravel()
for i, (image, label) in enumerate(zip(images, labels)):
axes_ravel[i].imshow(transforms.ToPILImage()(image))
axes_ravel[i].set_title(label.item())
axes_ravel[i].set_axis_off()
Load a pretrained model
TorchVision has prepared some of the most famous vision models with pretrained weights. In this tutorial, we are going to use a model called MobileNetV2. To load that model, we can use the code below:
from torchvision.models import mobilenet_v2, MobileNet_V2_Weights
model = mobilenet_v2(weights=MobileNet_V2_Weights.IMAGENET1K_V1)
print(model)
"""
--------
output:
MobileNetV2(
(features): Sequential(
(0): Conv2dNormActivation(
(0): Conv2d(3, 32, kernel_size=(3, 3), stride=(2, 2), padding=(1, 1), bias=False)
(1): BatchNorm2d(32, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): ReLU6(inplace=True)
)
...
(17): InvertedResidual(
(conv): Sequential(
(0): Conv2dNormActivation(
(0): Conv2d(160, 960, kernel_size=(1, 1), stride=(1, 1), bias=False)
(1): BatchNorm2d(960, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): ReLU6(inplace=True)
)
(1): Conv2dNormActivation(
(0): Conv2d(960, 960, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1), groups=960, bias=False)
(1): BatchNorm2d(960, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): ReLU6(inplace=True)
)
(2): Conv2d(960, 320, kernel_size=(1, 1), stride=(1, 1), bias=False)
(3): BatchNorm2d(320, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
)
)
(18): Conv2dNormActivation(
(0): Conv2d(320, 1280, kernel_size=(1, 1), stride=(1, 1), bias=False)
(1): BatchNorm2d(1280, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
(2): ReLU6(inplace=True)
)
)
(classifier): Sequential(
(0): Dropout(p=0.2, inplace=False)
(1): Linear(in_features=1280, out_features=1000, bias=True)
)
)
"""
In the code above, we have imported mobilenet_v2 and MobileNet_V2_Weights.
Then we loaded the mobile net with the weights that are pretrained on a dataset called ImageNet.
Then, we printed the model to see the layers.
As you can see, it consists of 2 Sequential layers.
The first one is to extract features from the image.
The second one is for classification.
Transfer Learning
Transfer learning is a technique of using a pretrained model (called the base model), on a new dataset with a different purpose. We don’t train all the layers; instead, we only train the classification layers. So, the first step is to freeze all the layers.
# -------------------[ Freeze the model weights ]-------------------
for param in model.parameters():
param.requires_grad = False
With the code above, we can freeze all the parameters. Now, let’s replace the classification layer with our layer.
print("classifier before the change:")
print(model.classifier)
print("-" * 20)
# -------------------[ Change the classifier layer ]-------------------
model.classifier = nn.Linear(in_features=1280, out_features=4)
print("classifier after the change:")
print(model.classifier)
"""
--------
output:
classifier before the change:
Sequential(
(0): Dropout(p=0.2, inplace=False)
(1): Linear(in_features=1280, out_features=1000, bias=True)
)
--------------------
classifier after the change:
Linear(in_features=1280, out_features=4, bias=True)
"""
As you can see, in the code above, we have replaced the classification layer with our layer.
As you recall, the dataset that we are using has $4$ classes.
So, the output of our final layer should be $4$.
Also, the output of the previous layer is $1280$, so we should set our in_features to $1280$ as well.
Now let’s see which layers are trainable:
for name, param in model.named_parameters():
if param.requires_grad:
print(f"{name} {param.shape}")
"""
--------
output:
classifier.weight torch.Size([4, 1280])
classifier.bias torch.Size([4])
"""
In the code above, I have used named_parameters to go over the model parameters and also get their names.
As you can see, the only parameters that are trainable are related to the classifier.
So, let’s replace dataset and the model that we had in
train_mnist_conv.py
and train our model.
I have already applied the changes in
transfer_learning.py.
Now, let’s run it for $20$ epochs and see the results on Tensorboard.
"""
--------
output:
mps
--------------------
epoch: 0
train:
loss: 1.0890
accuracy: 0.5330
validation:
loss: 0.9879
accuracy: 0.5894
--------------------
epoch: 1
train:
loss: 0.9273
accuracy: 0.6248
validation:
loss: 0.8319
accuracy: 0.6542
--------------------
...
--------------------
epoch: 19
train:
loss: 0.6706
accuracy: 0.7379
validation:
loss: 0.6769
accuracy: 0.7199
--------------------
test:
loss: 0.7269
accuracy: 0.7130
"""
Transfer Learning Train Accuracy
Transfer Learning Validation Accuracy
As you can see, in the results above, we have reached acceptable accuracies.
| subset | accuracy |
|---|---|
| train | $73.79$ |
| validation | $71.99$ |
| test | $71.30$ |
The results are pretty close, so our model is not overfitting. Also, the charts are ascending.
Fine-tuning
Fine-tuning has the same purpose as Transfer Learning. The only exception is that we train more layers. So, let’s load our model again and freeze all layers except the last two ($17$ and $18$).
model = mobilenet_v2(weights=MobileNet_V2_Weights.IMAGENET1K_V1)
# -------------------[ Freeze the model weights ]-------------------
for name, param in model.named_parameters():
if not ("18" in name or "17" in name):
param.requires_grad = False
In the code above, I iterated over the model’s parameters. If they had $18$ or $17$ in their names, I didn’t freeze them. Now, let’s change the classifier layer and print the trainable parameters.
model.classifier = nn.Linear(in_features=1280, out_features=4)
for name, param in model.named_parameters():
if param.requires_grad:
print(f"{name} {param.shape}")
"""
--------
output:
features.17.conv.0.0.weight torch.Size([960, 160, 1, 1])
features.17.conv.0.1.weight torch.Size([960])
features.17.conv.0.1.bias torch.Size([960])
features.17.conv.1.0.weight torch.Size([960, 1, 3, 3])
features.17.conv.1.1.weight torch.Size([960])
features.17.conv.1.1.bias torch.Size([960])
features.17.conv.2.weight torch.Size([320, 960, 1, 1])
features.17.conv.3.weight torch.Size([320])
features.17.conv.3.bias torch.Size([320])
features.18.0.weight torch.Size([1280, 320, 1, 1])
features.18.1.weight torch.Size([1280])
features.18.1.bias torch.Size([1280])
classifier.weight torch.Size([4, 1280])
classifier.bias torch.Size([4])
"""
As you can see, the last two layers of our model are still trainable, and we have a classifier that works with our dataset. I have already applied the required changes in fine_tuning.py. Let’s run it to see the results.
"""
--------
output:
mps
--------------------
epoch: 0
train:
loss: 0.9683
accuracy: 0.6188
validation:
loss: 0.7647
accuracy: 0.6870
--------------------
epoch: 1
train:
loss: 0.6625
accuracy: 0.7458
validation:
loss: 0.5958
accuracy: 0.7737
--------------------
...
--------------------
epoch: 18
train:
loss: 0.1789
accuracy: 0.9335
validation:
loss: 0.5616
accuracy: 0.8650
--------------------
epoch: 19
train:
loss: 0.1397
accuracy: 0.9518
validation:
loss: 0.6718
accuracy: 0.8577
--------------------
test:
loss: 0.6284
accuracy: 0.8537
"""
Fine-tuning Train Accuracy
- Orange: Transfer Learning
- Red: Fine-tuning
Fine-tuning Validation Accuracy
- Orange: Transfer Learning
- Red: Fine-tuning
As you can see in the results above, we have achieved better results than Transfer Learning.
| subset | accuracy |
|---|---|
| train | $95.18$ |
| validation | $85.77$ |
| test | $85.37$ |
Conclusion
In this tutorial, we learned how to use a pretrained model on a new dataset. This is one of the most used techniques in deep learning. At first, we learned about Transfer Learning and saw the results. Then, we learned about Fine-tuning and compared it with Transfer Learning.
