Plot and TensorBoard

Introduction

In the previous tutorial, we learned about model and Transfer Learning. Here is the summary of the code that we have implemented so far.

import os

os.environ["KERAS_BACKEND"] = "torch"
from pathlib import Path

from matplotlib import pyplot as plt

import torch
from torch.utils.data import random_split, DataLoader

from torchvision.datasets import ImageFolder
from torchvision import transforms

import keras
from keras import layers
from keras.applications import MobileNetV2

import kagglehub

import datetime

# Load the Dataset

path = kagglehub.dataset_download("balabaskar/tom-and-jerry-image-classification")

data_path = Path(path) / "tom_and_jerry/tom_and_jerry"

trs = transforms.Compose(
    [
        transforms.Resize((224, 224)),
        transforms.ToTensor(),
    ]
)

all_data = ImageFolder(data_path, transform=trs)

g1 = torch.Generator().manual_seed(20)
train_data, val_data, test_data = random_split(all_data, [0.7, 0.2, 0.1], g1)

train_loader = DataLoader(train_data, batch_size=12, shuffle=True)
val_loader = DataLoader(val_data, batch_size=12, shuffle=False)
test_loader = DataLoader(test_data, batch_size=12, shuffle=False)

# Create the model

base_model = MobileNetV2(include_top=False, input_shape=(224, 224, 3))

base_model.trainable = False

model = keras.Sequential(
    [
        layers.Input(shape=(3, 224, 224)),
        layers.Permute((2, 3, 1)),
        base_model,
        layers.Flatten(),
        layers.Dense(4, activation="softmax"),
    ]
)

model.compile(
    optimizer="adam",
    loss="sparse_categorical_crossentropy",
    metrics=["accuracy"],
)

# Train the model

history = model.fit(train_loader, epochs=5, validation_data=val_loader)

# Evaluate the model

loss, accuracy = model.evaluate(test_loader)

print("loss:", loss)
print("accuracy:", accuracy)

As you can see, in the code above, when we were training our model using .fit function, we were storing its result in a variable called history. In this tutorial, we will learn more about history and how to plot its results. Also, we will learn about a very powerful tool for plotting and seeing the results during training, called TensorBoard.

Plot the training history

First, let’s print the history to see what is inside it.

print(history)

"""
--------
output:

<keras.src.callbacks.history.History object at 0x12de7e300>
"""

As you can see, we have a Callback with the name of History. The History object, saves the information about the training parameters, in an attribute called params.

print(history.params)

"""
--------
output:

{'verbose': 'auto', 'epochs': 5, 'steps': 320}
"""

As you can see, we have trained our model for $5$ epochs and each epoch contained $320$ steps (mini-batches). Also, History saves the loss and the given metrics (in our case: Accuracy) as well, in an attribute called history.

print(history.history)

"""
--------
output:

{'accuracy': [0.41955670714378357, 0.5418513417243958, 0.5614081025123596, 0.5921773314476013, 0.6033898591995239],
 'loss': [8.836509704589844, 7.081783294677734, 6.813899517059326, 6.346843242645264, 6.222221374511719],
 'val_accuracy': [0.540145993232727, 0.5246350169181824, 0.5729926824569702, 0.6076642274856567, 0.5894160866737366],
 'val_loss': [7.019584655761719, 7.262048721313477, 6.537136554718018, 6.103211879730225, 6.454712390899658]}
"""

As shown, now we can access to loss and accuracy of training and validation in each epoch. So, let’s plot the loss and accuracy separately.

plt.figure()
plt.title("loss")
plt.plot(history.history["loss"])
plt.plot(history.history["val_loss"])
plt.legend(["loss", "val_loss"])

plt.figure()
plt.title("accuracy")
plt.plot(history.history["accuracy"])
plt.plot(history.history["val_accuracy"])
plt.legend(["accuracy", "val_accuracy"])

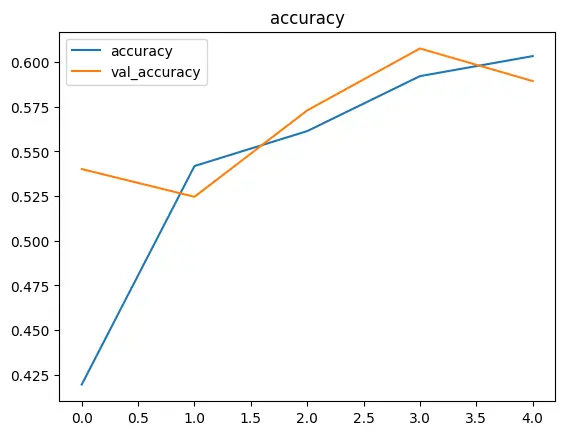

Loss plot Accuracy plot

As you can see, we have trained our model for $5$ epochs. For training subset, our loss and accuracy were improving (blue line). But for the validation subset, we had some ups and downs which is natural. We are going to learn how to analyze them in the upcoming tutorials.

Source: https://www.tensorflow.org/api_docs/python/tf/keras/callbacks/History

TensorBoard

If we want to plot our results using History callback from the output of the fit module, we have to wait until the training is done. So, we can’t have live plots and data to analyze our training procedure. One of the ways that we can solve this problem is by logging the data during training in our hard drive. Then, use a UI to load that log and analyze it. That’s exactly what TensorBoard does.

TensorBoard is an open-source visualization toolkit for machine learning experiments. It has its own logging standard and visualization dashboard. Anytime that we log something in our code, we can see that log on the dashboard. TensorBoard is widely used and is one of the standard ways to log and share our training procedure. So, now we have two steps to take:

  • Use our standard TensorBoard logging when we fit our model
  • Open the UI Dashboard and see the result

Add TensorBoard to the code

To add TensorBoard logging in our training procedure, Keras has provided us a CallBack. We can create a new object of that CallBack using the code below:

log_dir = "logs/fit/" + datetime.datetime.now().strftime("%Y%m%d-%H%M%S")
tensorboard_callback = keras.callbacks.TensorBoard(log_dir=log_dir)

In the code above, at first we have created the destination path that we want to store our logs. The standard that we used is putting all the logs in the parent directory called logs/fit and name each of them based on the time that they are created. For example: logs/fit/20251118-092033. Then we created a new TensorBoard object with passing one argument to it. log_dir is the destination path that our logs would be stored which we filled it with the directory name that we have created earlier.

Now, it’s time to give our TensorBoard Callback to the fit function. To do so, we can use an argument called callbacks in the fit function. This argument takes a list of Callbacks. So, the only thing that we should do, is to add our tensorboard_callback to the callbacks like below:

history = model.fit(
    train_loader,
    epochs=5,
    validation_data=val_loader,
    callbacks=[tensorboard_callback],
)

Now, when we fit our model, the training logs would be saved at logs/fit.

Source: https://keras.io/api/callbacks/tensorboard/

TensorBoard dashboard

Now, let’s open up the TensorBoard dashboard. The code to do that is like below:

tensorboard --logdir logs/fit


"""
--------
output:

Serving TensorBoard on localhost; to expose to the network, use a proxy or pass --bind_all
TensorBoard 2.20.0 at http://localhost:6006/ (Press CTRL+C to quit)
"""

This code would make a local host, and you can access its dashboard though web browser. Here is an example of a dashboard in a web browser.

tensorboard dashboard

If you want to load the TensorBoard dashboard in your Jupyter notebook, you should first load it with the code below:

%load_ext
tensorboard

And then run the loading code:

%tensorboard - -logdir
logs

The output of the respective cell would work interactively, and you can access the dashboard. Now, let’s get deeper into the Scalars tab in TensorBoard dashboard. We are going to learn about the other tabs in the future tutorials.

Scalars tab

Scalars tab contains the plots of our loss and metrics.

scalars tab

As you can see, in the image above, we have 5 different sections:

  • epoch_accuracy
  • epoch_learning_rate
  • epoch_loss
  • evaluation_accuracy_vs_iteration
  • evaluation_loss_vs_iteration

These sections can be opened to see the validation and train plots. In the left panel, we can select the run that we want. We might have trained our model multiple times, we can select the respective run to see the results. Also, for each run, results of train and validation are being stored separately. We can choose one of them to see its result.

Your turn

  • Draw accuracy and loss plots
    • You should include train and validation on each one of them
  • Add Tensorboard to your training procedure

Conclusion

In this tutorial, we learned about plotting our training procedure. First, we explained the History object that .fit function returns. Then, we used its data to plot our results. Second, we address that to get the History object, we should wait
for the .fit function to finishes its job. To see the result’s online during training, we learned that we can use Tensorboard. After that, we added tensorboard to our training procedure. Finally, we learned about the TensorBoard dashboard and Scalars tab.
