Analog

Introduction

In the previous tutorials, we were focusing on digital read and write. We could only write and read 0 and 1 from a pin. In this tutorial, we will discuss how to write and read values between 0 and 1.

Analog Read

In the previous tutorials, we were working with digital input and output. As you recall, to read a digital input, we had a function called digitalRead. To read analog input, we have a function as well. This function is called analogRead. The syntax of it is pretty similar to the digitalRead, the only exception is that it returns a number in a range of $[0, 1023]$. As you might have guessed from the range, Arduino Uno allocates 10 bits for reading analog data.

In Arduino Uno, we have $6$ pins that we can use to read Analog input. These pins are labeled as A0 to A5. In the image below, we show them by drawing a yello rectangle over them.

For reading digital values, $5V$ indicates $1$ and $0V$ indicates $0$. For analog values, $5V$ indicates $1023$ and $0V$ indicates $0$. As you can see, we divide the values between $5V$ and $0V$ into $1024$ parts. With using this technique, we are being able to read voltage between $5V$ and $0V$.

Potentiometer

To create a voltage between $5V$ and $0V$, we can use a device called Potentiometer. You can find it at Passive/Resistors/Potentiometer in SimulIDE. As you can see, a Potentiometer has $3$ pins and a button to control the output voltage. Potentiometer creates voltage with increasing and decreasing the resistance. Let’s connect a Potentiometer to a fixed voltage to see how it works. To do so, we can follow these steps:

• Put a Potentiometer on the board (Passive/Resistors/Potentiometer).
• Connect the pin that is closer to a red line, to a Fixed Voltage.
• Connect the other pin to the Ground.
• Put a VoltMeter on the board (Meters/VoltMeter).
• Connect the output pin of the Potentiometer (the pin with the arrow on it) to the red pin of the VoltMeter.
• Connect the other pin of the VoltMeter (the pin beside the red pin) to the ground.

Your connection, should look like as following:

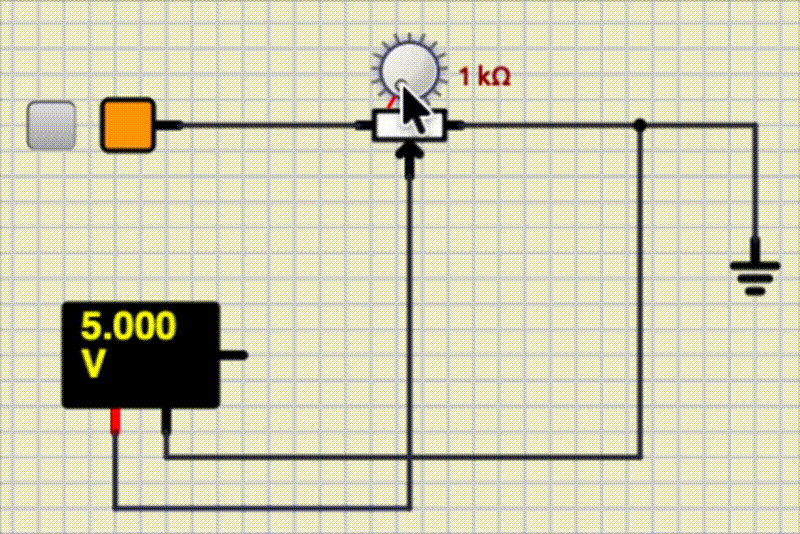

Now, let’s start the simulation and rotate the button on the Potentiometer.

As you can see, we can make voltages between $5V$ and $0V$.

Potentiometer and Arduino

Now, let’s connect our Potentiometer to the Arduino. The steps are pretty much the same.

• Connect the pin closer to the red line to a 5V.
• Connect the pin on the opposite of the red line to the Ground.
• Connect the output pin (pin with an arrow on it) to A0.

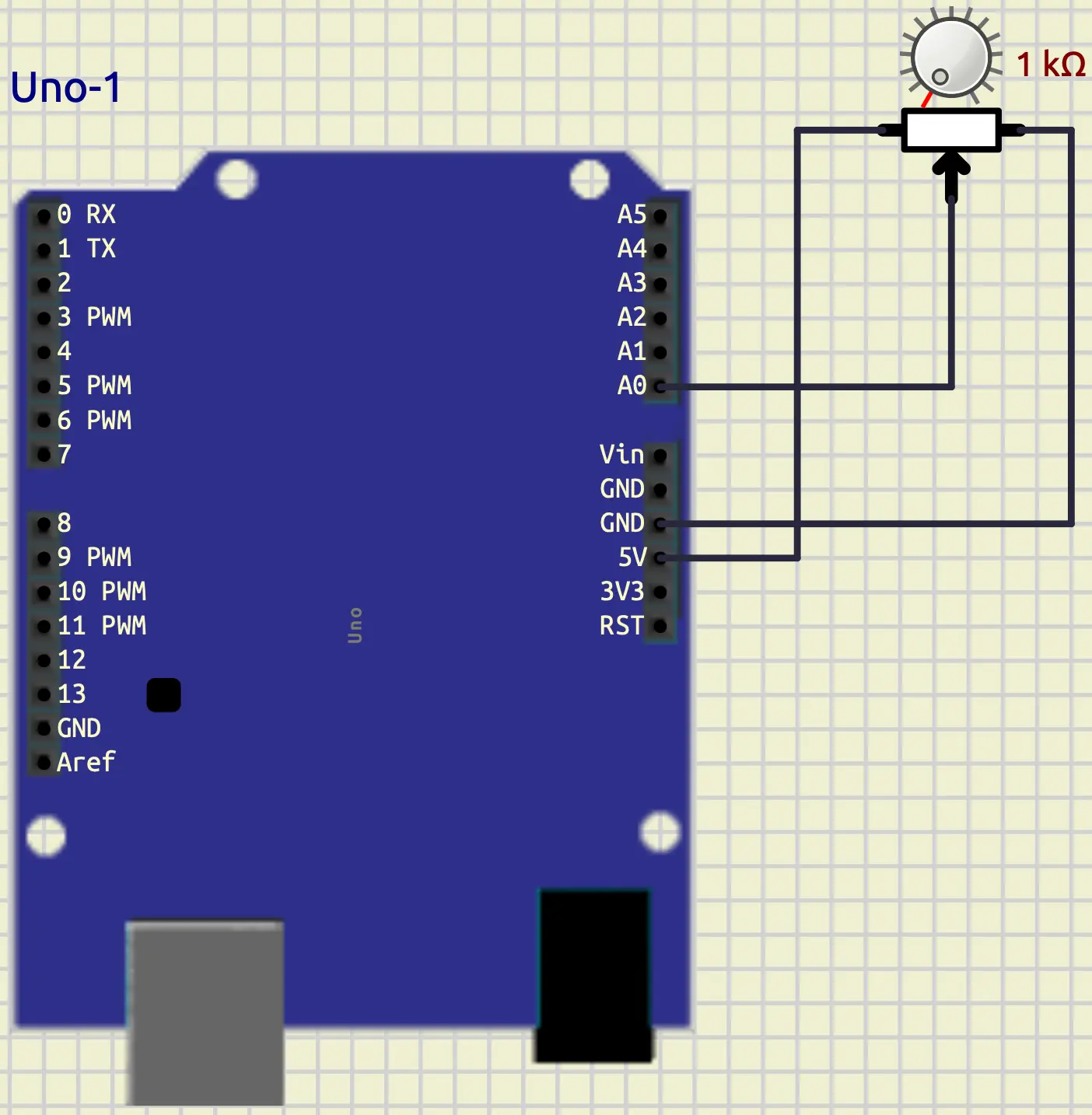

Your connection should look like this:

Now, let’s write a code to read the analog data.

#include <Arduino.h>

void setup()
{
  Serial.begin(9600);
}

void loop()
{
  int our_input = analogRead(A0);
  Serial.println(String(our_input));
  delay(1000);
}

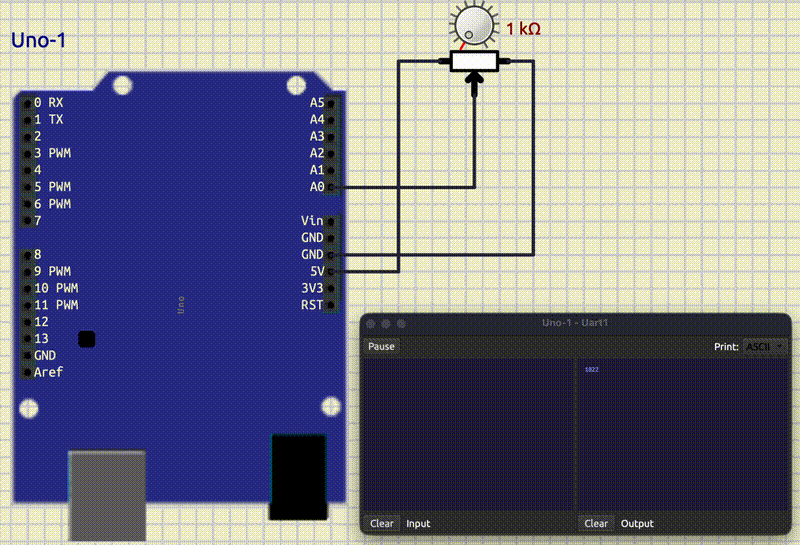

The code above, reads the analog input from A0. Then, it prints the read value into Serial terminal. The output looks like as following:

PWM

Before we get to work with Analog Write, let’s learn about PWM. Because Arduino Uno uses PWM to write Analog data. PWM (Pulse Width Modulation), is a technique for controlling the power delivered to a component.

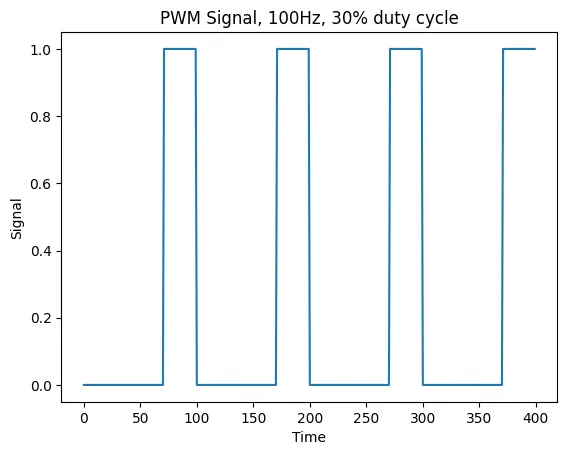

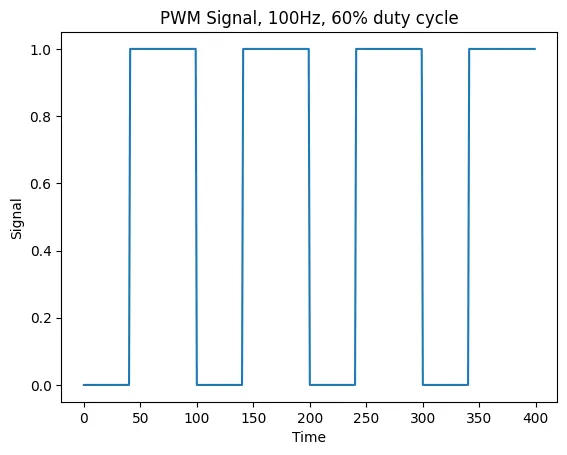

In this technique we use different width of pulses in a signal. These signals switch between $0$ and $1$. The percentage of the time that a pulse is $1$ is called duty cycle. The pictures below show two examples of 100Hz PWM, one with the 30% duty cycle and the other 60%.

Analog Write

Now, that we know about PWM, let’s talk about writing analog data in Arduino uno. In Arduino Uno we have $6$ pins that we can create PWM on them. Including: $3$, $5$, $6$, $9$, $10$, and $11$ These pins are shown in the board with a ~ beside them and in SimulIDE with PWM. To create our duty cycles, we can use the numbers in range $[0, 255]$. $255$ means $100%$ and $0$ means $0%$ duty cycles.

For writing digital values, we had a function called digitalWrite. We have a similar function for analog values as well, and it is called: analogWrite. Their syntax is similar, with the exception that analogWrite accepts an integer for its second argument.

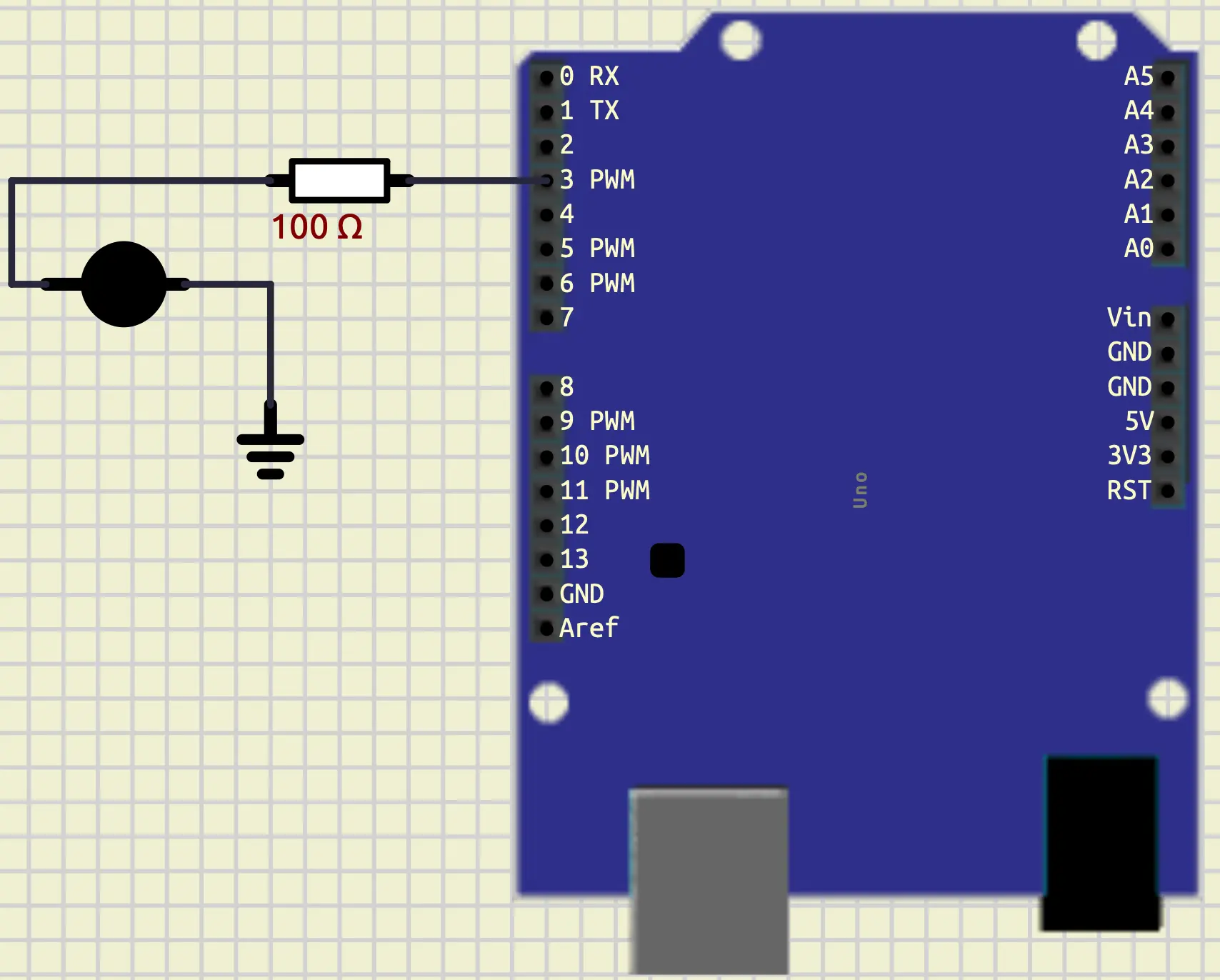

Now, let’s connect an LED to pin $3$. Your connection should look like below:

Now, let’s write a code to write analog data on pin $3$.

#include <Arduino.h>

void setup()
{
  pinMode(3, OUTPUT);
}

void loop()
{
  for (int i = 0; i < 256; i++)
  {
    analogWrite(3, i);
    delay(10);
  }
}

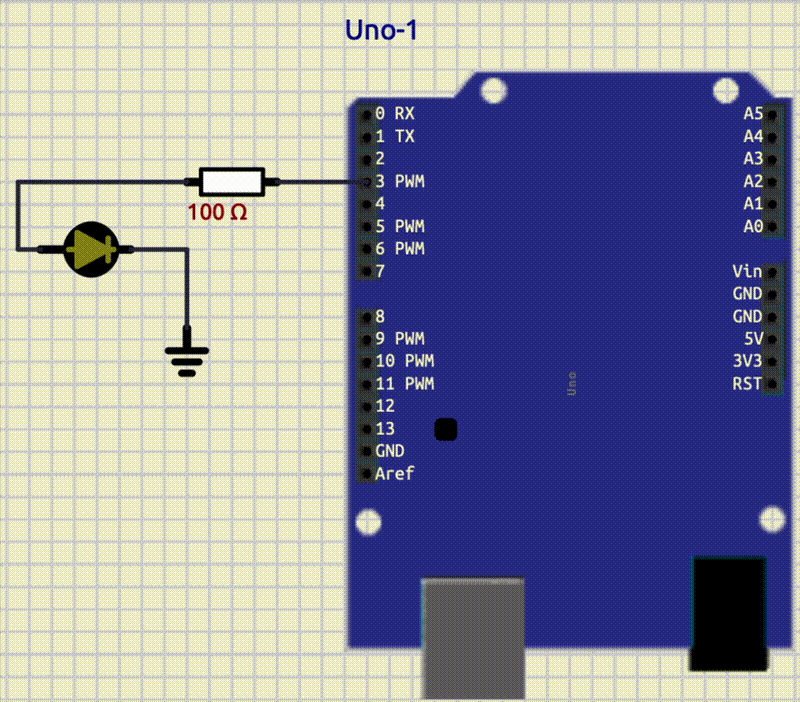

In the code above, first we set the pin mode of pin 3 as output. Then, we have a for loop that starts from $0$ and goes until $256$. So, we expect the brightness of our LED changes from dark to light. As you can see in the output below, this is the exact thing that is happening.

If we want to see the PWM that we are generating, we can connect an Oscope to our output. To do so, we can follow these steps:

• Put an Oscope on the board (Meters/Oscope)
• Connect the bottom pin to the ground
• Connect any other pin to the output of pin $3$.

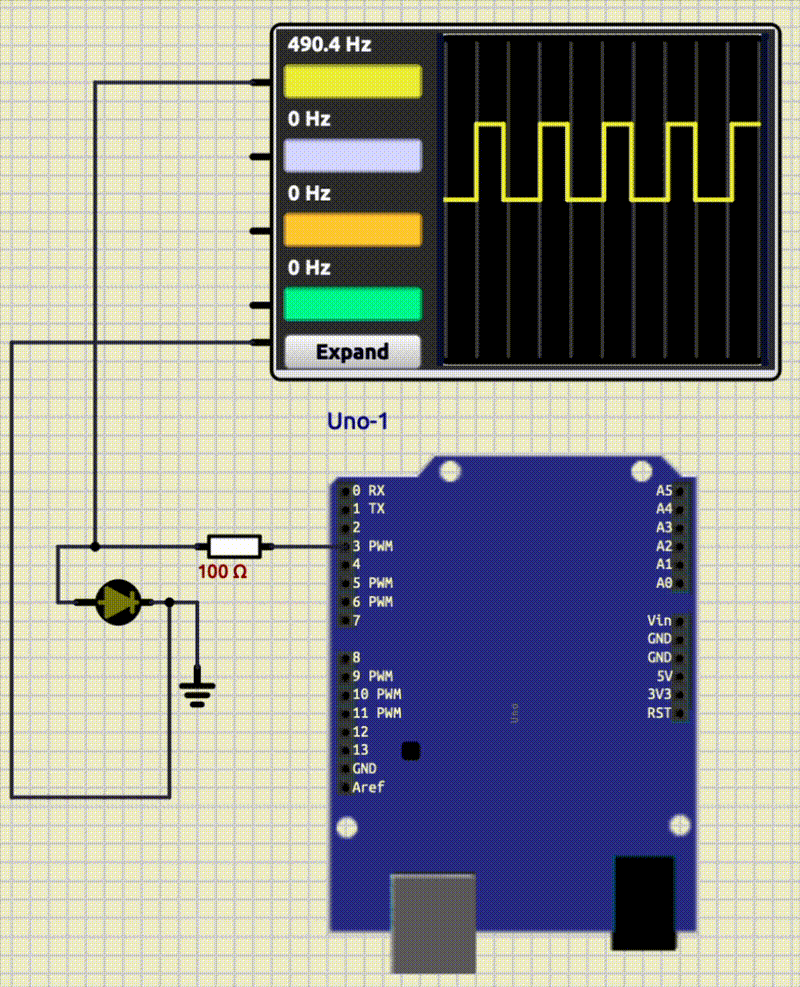

Your output should look like as following:

Combining both

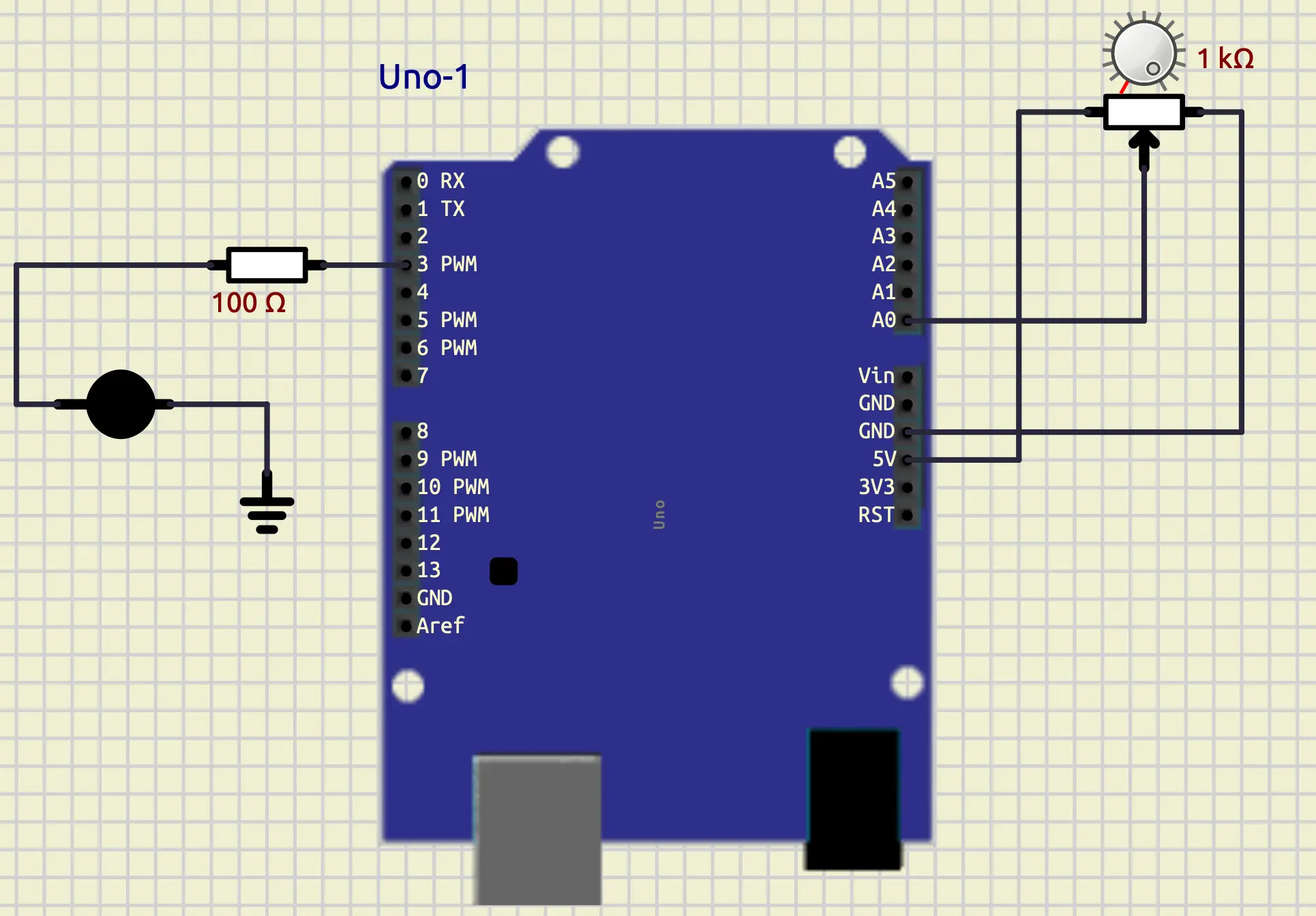

Now, let’s combine the both reading and writing analog values together. Your connection should look like below:

Now, let’s write a code that changes the brightness of the LED using the Potentiometer.

#include <Arduino.h>

void setup()
{
  pinMode(3, OUTPUT);
}

void loop()
{
  int our_input = analogRead(A0);
  int brightness = map(our_input, 0, 1023, 0, 255);
  analogWrite(3, brightness);
  delay(1000);
}

As you can see, in the code above, we read analog data from pin A0. The value is in the range of $[0, 1023]$. To write it on the pin $3$, we need to rescale the value to the range of $[0, 255]$. To do so, we have used a function called map. This function takes our input as its first argument, then takes the current range and the target range and outputs the rescaled value. After that, we are able to write that rescaled value to pin $3$. The output looks like as following:

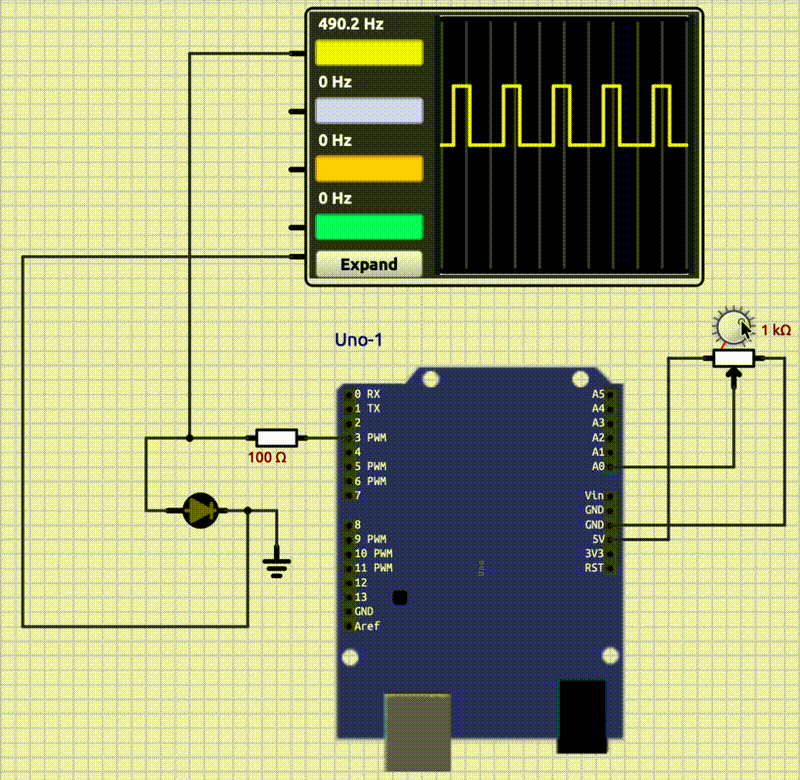

If we want to see the PWM, we can connect an Oscope like below:

DC motor

DC motor is a device that converts electrical energy into rotation. We use a DC motor in so many different things like, saw, drill, toys and e.t.c. To connect a DC Motor to an Arduino we should consider that, a DC Motor takes too much current, and we should not connect it directly to an Arduino pin. In SimulIDE it is not going to be a problem, but in real life we should not do that. To practice real life connection, we use a battery to power our DC motor. Also, we use a Mosfet to write analog data on our DC motor. Now, let’s change our LED to a DC motor with these following steps:

• Remove the LED
• Put a DC motor on the board (Outputs/Motors/DC Motor).
• Put a Battery on the board (Sources/Battery).
• Put a Mosfet on the board (Active/Transistor/Mosfet).
• Connect pin $3$ to the middle pin of the mosfet (pin with the arrow).
• Connect one pin of the mosfet to the ground.
• Connect the other pin of the mosfet to the negative (-) of the DC Motor.
• Connect the positive (+) of the motor to the positive (red) of the battery.
• Connect the negative (black) of the battery to the ground.

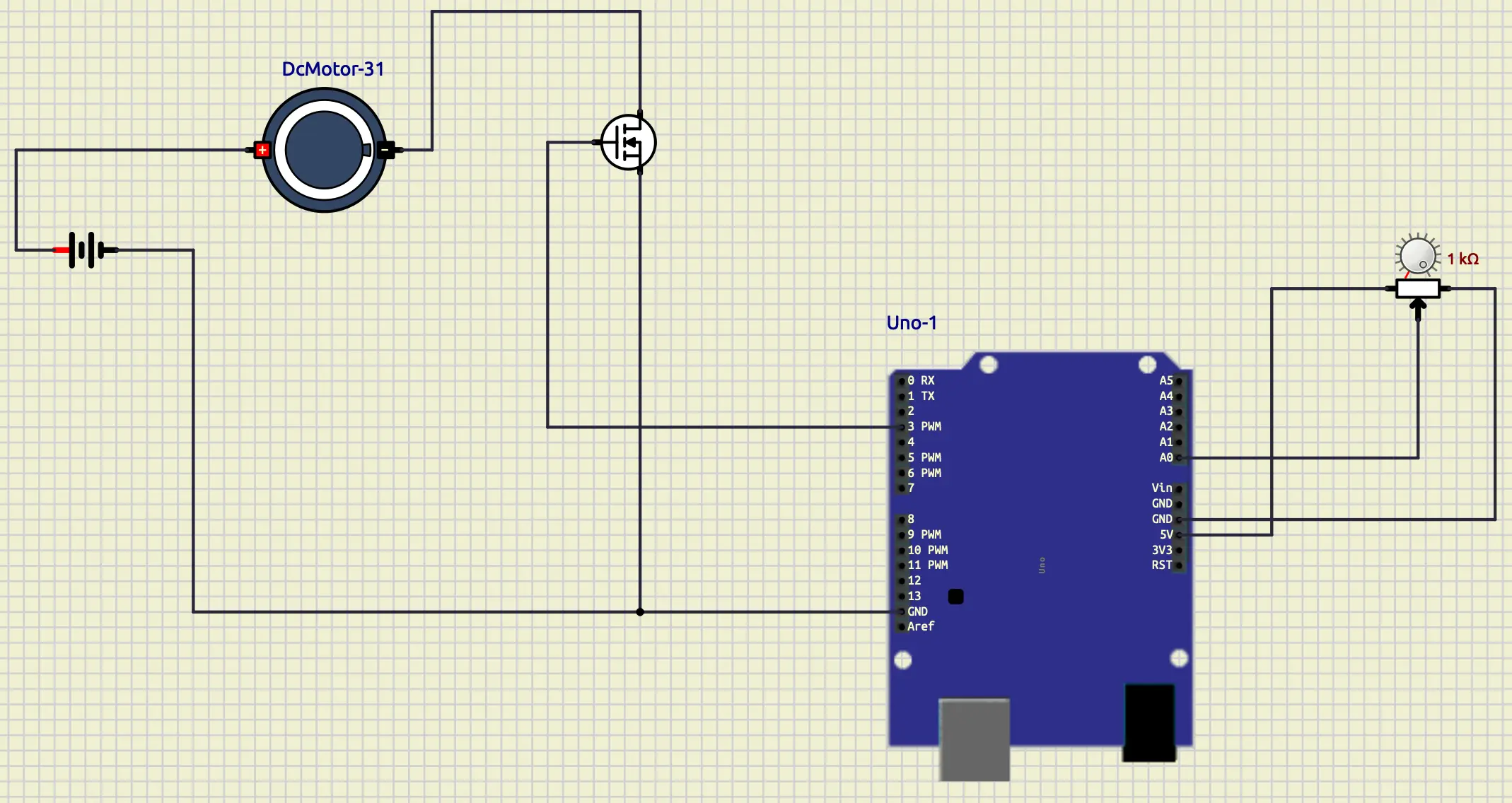

Your connection should look like below:

There is no need to change our code. So, if we run our simulation with the code that we already have written for the LED, the output would look like below:

Servo Motor

Servo motor is a type of electric motor that is designed for precise control. It is widely used in robotics. We can control the position of the servo motor by sending a PWM signal to it. In this session, we will be using a simple DC servo motor which only take angles in range of [-90, 90]. The desired PWM frequency for this servo motor is 50Hz. This servo motor has three pins: VCC, GND, and signal. So, let’s connect a Servo motor to an Arduino Uno.

• Put a Servo motor on the board (Outputs/Motors/Servo Motor).

So, to control a Servo motor we need to create a PWM signal with the frequency 50hz. To do so, we can use a library called Servo. We can add it to our **PlatformIO project like this:

lib_deps =
    ...
    arduino-libraries/Servo

Then, we can include it like below:

#include <Servo.h>

Now, we should create an object of Servo like below:

Servo my_servo;

Then, we need to do the initialization by using a function called attach. For example, let’s attach our servo to pin $3$.

my_servo.attach(3);

Then we can use the write function to write the angle that we want. For example let’s write $45$ on it.

my_servo.write(45);

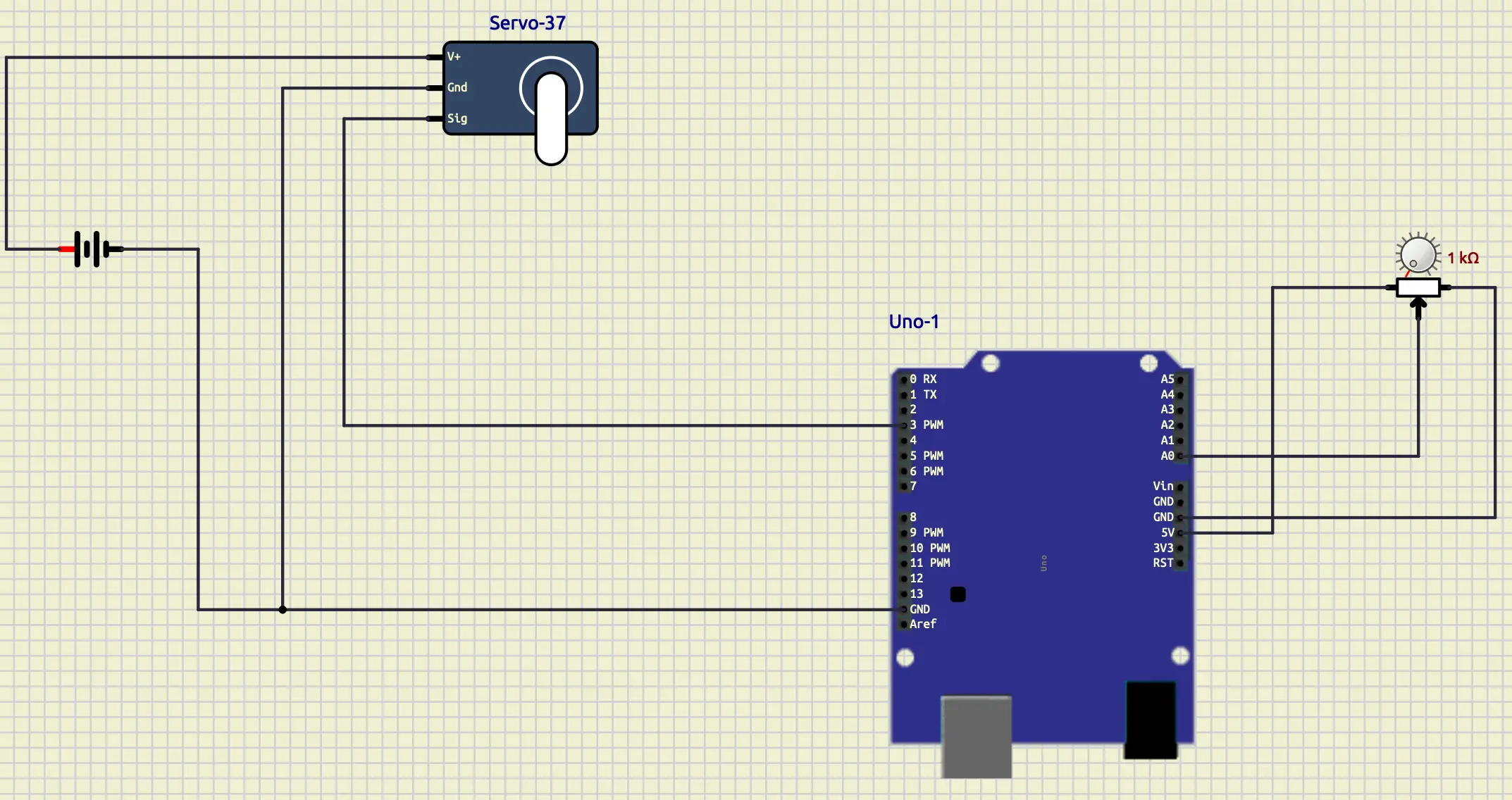

Now, write a code that maps the data of the Potentiometer to the servo angles. Your output should look like as following:

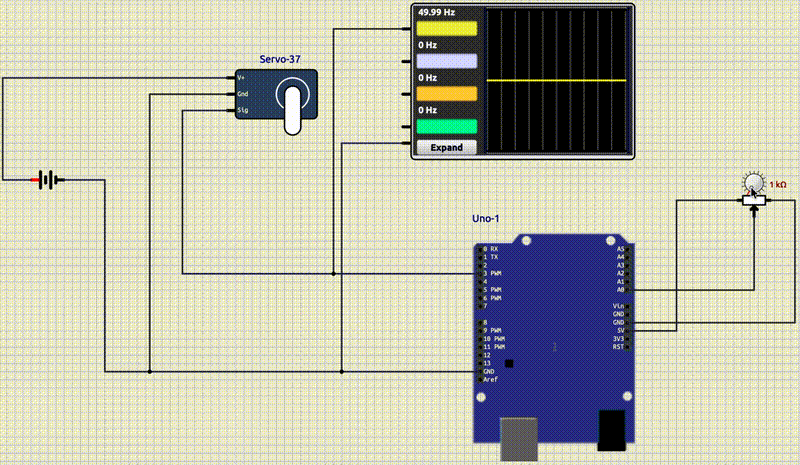

If we want to see the generated PWM, we can add a Oscope like below:

Combine All

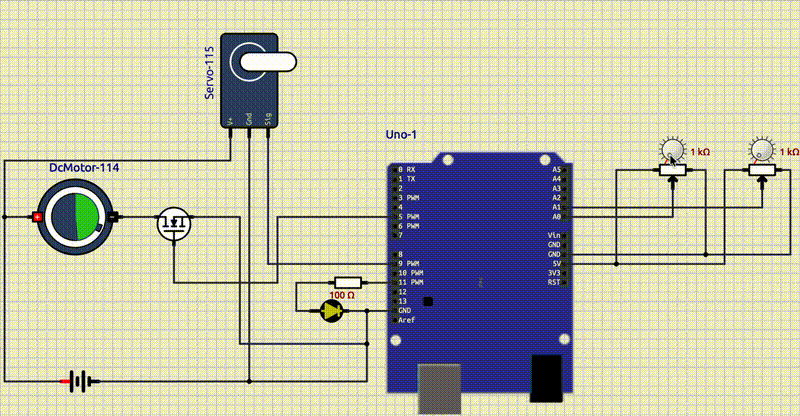

Now, let’s combine all the things that I have learned. We need two Potentiometers, one for controlling the Servo motor and the other one for controlling the speed of DC motor and the brightness of the LED. Your output should be like below:

Conclusion

In this tutorial, we have Learned about how to deal with Analog data in Arduino Uno. First, we learned about analogRead. Then, we introduced PWM and that Arduino uses PWM to write analog data using analogWrite. After that, we have explained about two of the use cases of the analogWrite, which were DC motor and Servo motor. Finally, we combined all the things that we have learned so far.
