Serial Communication

Introduction

In the previous tutorial, we learned how to work with LCD and Keypad. In this tutorial, we are going to learn about Serial Communication and some of its usages.

Serial communication

Serial communication is a way that a microcontroller can send and receive data one bit at a time. You can use it to communicate with computers, microcontrollers, and modules (e.g., GPS, Bluetooth, ESP8266). Serial communication is one of the most important concepts in microcontrollers. Arduino Uno uses UART (Universal Asynchronous Receiver-Transmitter) to handle the Serial communication. UART needs two pins, one for receiving data (RX) and one for transmitting data (TX). These two pins are available in Arduino Uno in pin 0 (RX) and pin 1 (TX). Also, we can have Serial Communication with USB as well. One of the most important things in having a Serial Communication is setting the correct baud rate for both of the devices that are trying to communicate. Baud rate indicates the speed of data transfer. The reason that baud rate should be the same for both devices is that, we have an asynchronous communication. The start and the end of the communication are determined with start bit and end bit.

Serial Terminal on SimulIDE

One of the ways that we can use Serial communication is by using a Serial Terminal. You can access a Serial Terminal in Micro/Peripherals/Serial Terminal. Now, let’s put a Serial Terminal on the board and connect it to an Arduino Uno. To do that, we should wire them like below:

TX of Arduino -> RX of Serial Terminal
RX of Arduino -> TX of Serial Terminal

You should have something like this:

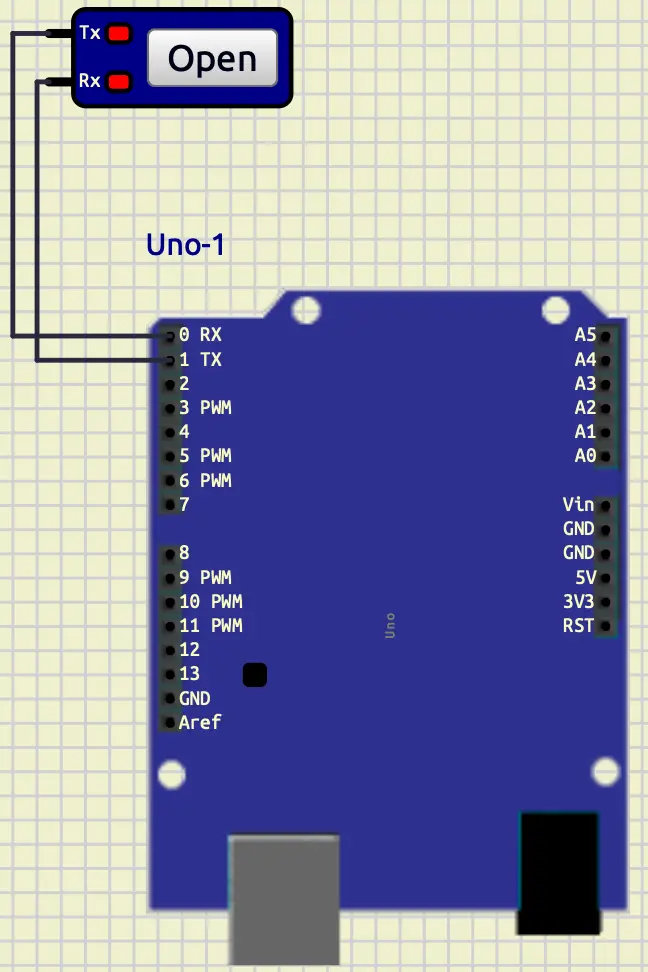

Serial Terminal

Serial Hello World

Now, let’s create a PlatformIO project and write a Hello World for Serial communication. At first, let’s initialize the Serial Communication. To do so, we can use the code below:

Serial.begin(9600);

In the code above, we set the baud rate of our Serial communication (default baud rate in Serial Terminal in SimulIDE) to 9600 and initialize the Serial communication. (To change the baud rate of the Serial Terminal in SimulIDE you can go to the properties of that Serial Terminal). Now, we are ready to write something on it. To do so, we can use the code below:

Serial.println("Hello World");

In the code above, we have printed Hello World into the serial port. The function println, prints the given input and makes a new line. Now, let’s change our code in a way that it prints Hello World every one second. So we have the full code like below:

#include <Arduino.h>

void setup()
{
  Serial.begin(9600);
}

void loop()
{
  Serial.println("Hello World");
  delay(1000);
}

Let’s upload it into our SimulIDE. After pressing start simulation, you should click on the open button on the Serial Terminal. Your output would be something like below:

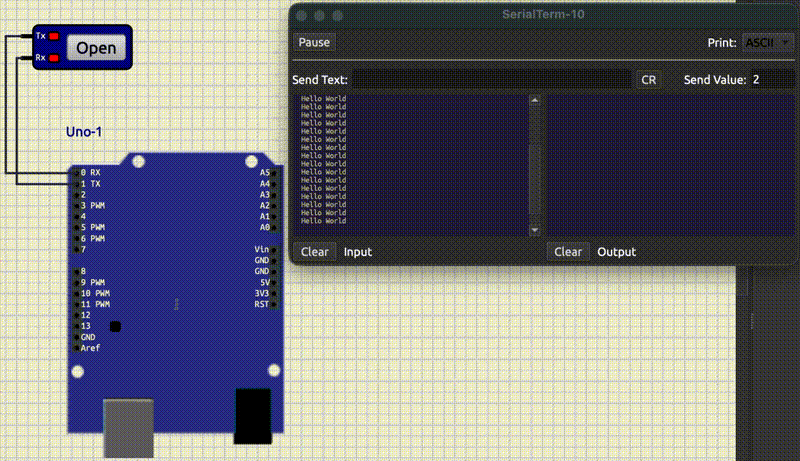

Hello World Serial

As you can see in the left panel Hello World is being printed constantly. Also, Rx on the terminal becomes yellow whenever it receives data.

Read from Serial Terminal

We have managed to send data to the Serial Terminal. Now, let’s talk about how to read data from it. To do so we can use a function called Serial.read(). It would read the incoming byte. If there is no data, it would return -1. Also, we have another function called Serial.available(). This function returns the number of bytes which are available for reading. So if we want to write a code that reads data and prints each character in separate lines, we can write something like below in the loop function:

if (Serial.available())
{
    char ch = Serial.read();
    Serial.println(ch);
}

The output would be something like below:

Serial Read

In the example above, I wrote hello and world separately. After I wrote down each one of them I pressed Enter. As you can see in the right panel, we can see the input that we sent to the Arduino and in the left panel we can see the response of the Arduino.

Read until new line

If we want to read the whole string, we can use a function called Serial.readStringUntil. This function reads the data in the buffer until it reaches the terminator that we give it as an argument. As a result it returns a String. So, if we want to change our code to read the whole line, we can change it like below:

if (Serial.available())
{
    String result = Serial.readStringUntil('\n');
    Serial.println(result);
}

The output would be something like this:

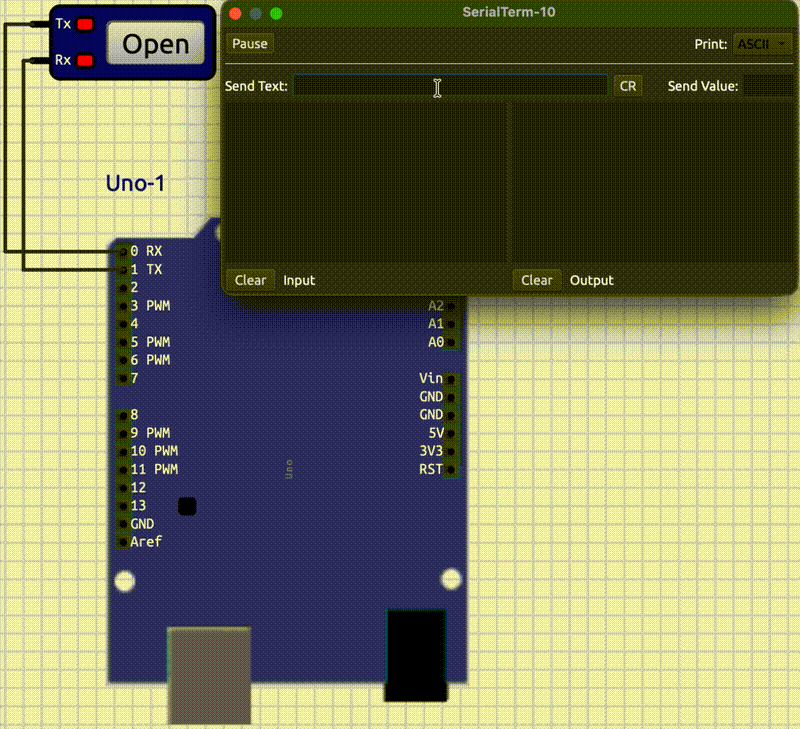

Serial Read String

As you can see, we write a whole sentence and when we press enter after some time it would print us the result.

Built-in Serial Monitor in SimulIDE

For debugging purposes, SimulIDE has implemented a Serial Monitor that you can see the transmitted and received data through that. To access it, you can right-click on the Arduino Uno then select mega328/Open Serial Monitor/USart.

Software Serial

The built-in pins for Serial Communication in Arduino Uno are pin 0, 1. This is managed by hardware. If you want to use other pins for the Serial communication, you should use a package called SoftwareSerial. You can import it like below:

#include <SoftwareSerial.h>

To tell the SoftwareSerial which ports you need, you should make an object like below:

SoftwareSerial mySerial(10, 11); // RX, TX

In the code above, we have used pin 10 for RX and pin 11 for TX. Now, we are ready to connect the device that we want to communicate with to pin 10 and 11 and start our Serial communication as we would before. The whole code for a Hello World example is like this:

#include <Arduino.h>
#include <SoftwareSerial.h>

SoftwareSerial mySerial(10, 11); // RX, TX

void setup()
{
  mySerial.begin(9600);
}

void loop()
{
  mySerial.println("Hello SoftwareSerial!");
  delay(1000);
}

Your output should look like below:

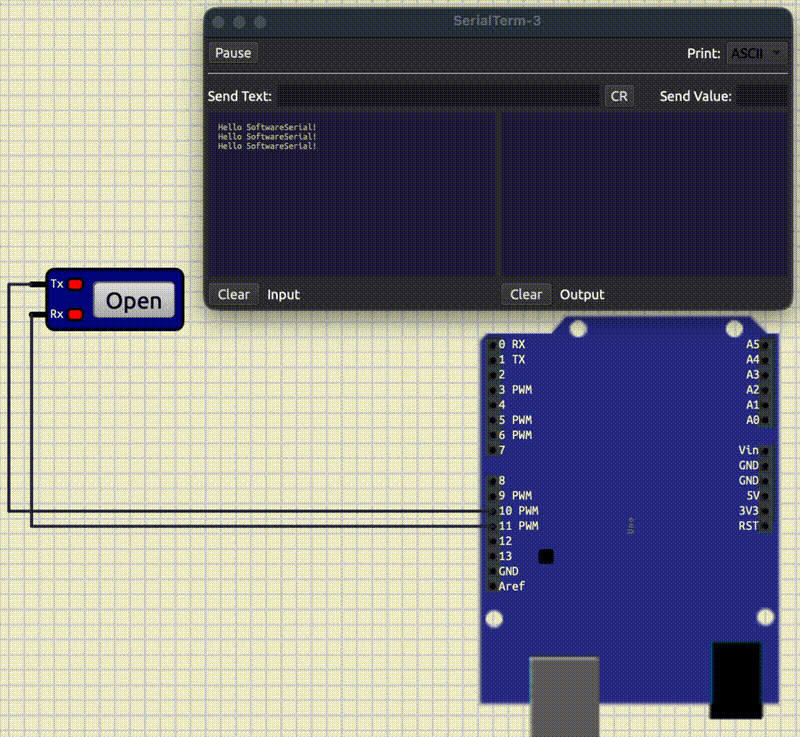

Software serial

Counter on two Arduinos

Now, that we know how two devices can communicate using Serial communication, let’s connect two Arduinos together. We add a Keypad to the first Arduino. Its job is to receive a number and send it to the second Arduino. Then, we add an LCD to the second Arduino. Its job is to count down the number that it received to 0. Your output should look like this:

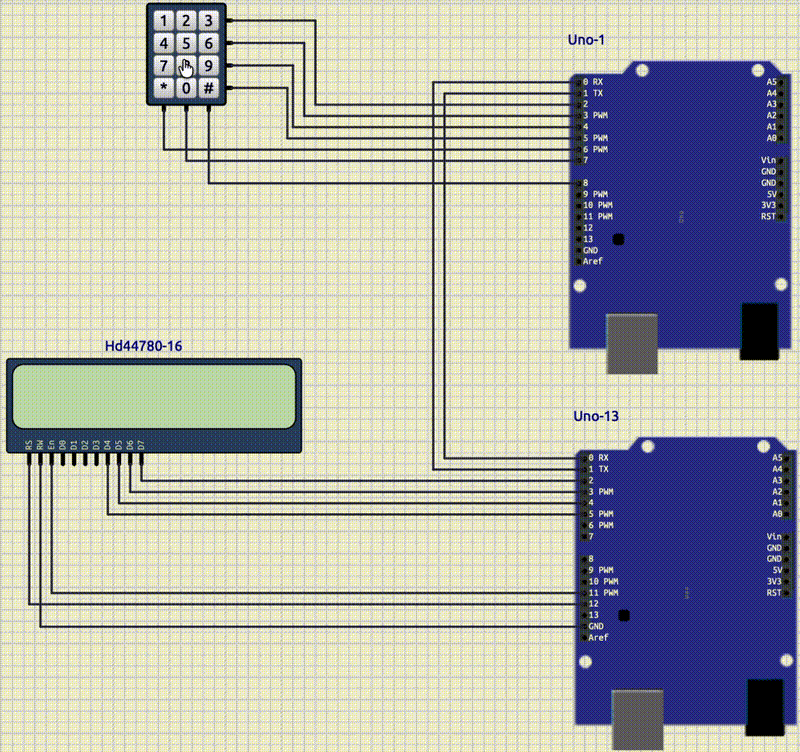

Two Arduinos

Conclusion

In this tutorial we walked through the concepts of Serial Communication. First, we explained the Serial Communication. Then, we provided an example on how to write with it. After that, we learned how to read from it. Next, we explained about SoftwareSerial and how to make other pins to work as a Serial communication pins. Finally, we provided an example with two arduinos to make you understand the concepts better.
